Processing Equipment
PROCESSING EQUIPMENT
5 slitting lines · 3 shearing machines · two plants working as one
PROCESSING SERVICES
Processing Services
Yiyou provides three processing services—slitting, cut-to-length shearing, and manual shearing—to flexibly handle orders in small lots and varied specifications.

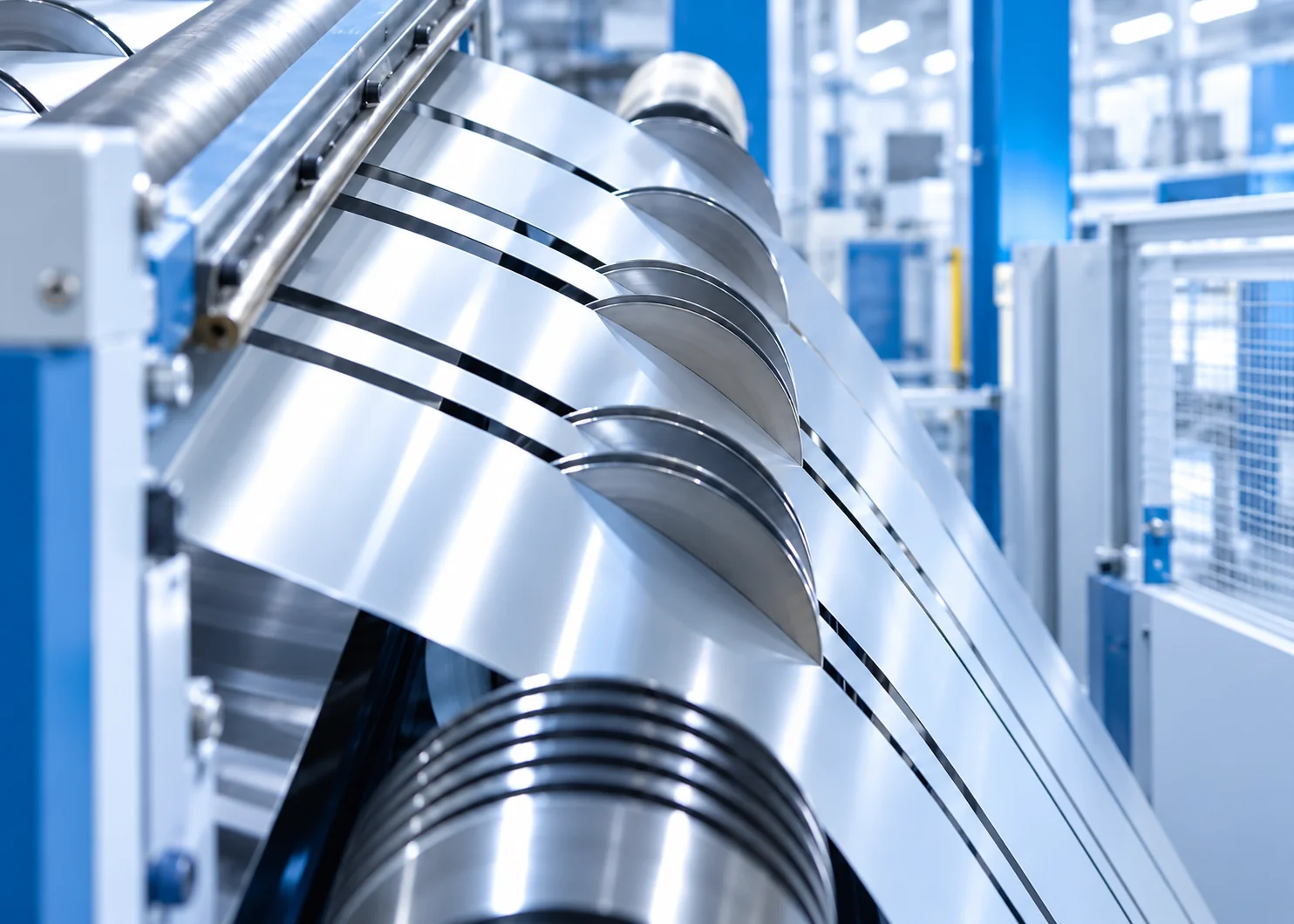

Slitting
Coils split lengthwise to the required width, down to 7 mm.
Cut-to-Length
Cross cutting to fixed lengths, up to 4,500 mm per sheet.
Manual Shearing
Custom cutting for small lots and non-standard sizes.
SLITTING LINE
Slitting Line Specifications
Full capacity specifications for slitting equipment; the workable range for a given order is confirmed in writing at quotation.
Scroll horizontally to view all specifications
| NO. | Code | Equipment | Manufacturer | Surface Inspection | Steel Grade / Thickness (mm) | Width (mm) | Length (mm) | Max Coil Weight (t) | Max Outside Dia. (mm) | Start-up (yy/mm) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Carbon Steel | Stainless Steel | Aluminum | ||||||||||
| ① | SL1 | Slitting Line No.1 | SONODA | With surface inspection | 0.27 ~ 3.2 | 0.3 ~ 2.0 | 0.3 ~ 3.4 | 20 ~ 1,300 | - | 15 | 1,500 | 1997/01 |
| ② | SL2 | Slitting Line No.2 | SONODA | With surface inspection | 0.4 ~ 4.2 | 0.4 ~ 2.5 | 0.4 ~ 4.4 | 20 ~ 1,300 | - | 15 | 1,800 | 2001/12 |
| ③ | SL3 | Slitting Line No.3 | SONODA | Without surface inspection | 0.15 ~ 1.5 | 0.15 ~ 1.2 | - | 7 ~ 450 | - | 8 | 1,700 | 2005/04 |
| ④ | SL4 | Slitting Line No.4 Plant Ⅱ | Welltime | With surface inspection | 0.6 ~ 6.0 | 0.6 ~ 4.0 | 0.6 ~ 6.3 | 29 ~ 1,600 | - | 25 | 2,000 | 2012/11 |
| ⑤ | SL5 | Slitting Line No.5 | Nippon Steel Electromagnetic | Without surface inspection | 0.15 ~ 0.8 | - | - | 19 ~ 500 | - | 5 | 1,600 | 2026/03 |
The blue item indicates the equipment of PHASE Ⅱ factory.
LEVELING & SHEARING
Shearing Specifications
Full capacity specifications for shearing equipment; the workable range for a given order is confirmed in writing at quotation.
Scroll horizontally to view all specifications
| NO. | Code | Equipment | Manufacturer | Surface Inspection | Steel Grade / Thickness (mm) | Width (mm) | Length (mm) | Max Coil Weight (t) | Max Outside Dia. (mm) | Start-up (yy/mm) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Carbon Steel | Stainless Steel | Aluminum | ||||||||||
| ⑥ | LV1 | Leveling Line No.1 | Welltime | Without surface inspection | 0.3 ~ 2.5 | 0.3 ~ 1.8 | 0.3 ~ 3.0 | 150 ~ 800 | 200 ~ 2,000 | 7 | 1,500 | 2006/04 |
| ⑦ | LV3 | Leveling Line No.3 | Welltime | Without surface inspection | 0.5 ~ 3.0 | 0.5 ~ 2.0 | 0.3 ~ 3.2 | 300 ~ 1,300 | 200 ~ 4,500 | 15 | 1,800 | 2008/11 |
| ⑧ | SH | High Speed Shearing Machine | AIZAWA | Without surface inspection | ~ 3.2 | ~ 3.2 | - | 200 ~ 1,280 | 40 ~ 1,250 | 2 | - | 2026/04 |
The blue item indicates the equipment of PHASE Ⅱ factory.
Have a coil you want to check against our lines?
Send us the material, thickness and finished width and length; we will map it against the capacities above and come back with a route and a lead time.
